PATH Alba

Unleash the full potential of your business centre or hospitality space with our top-selling court, the ALBA.

This simple yet high-quality design is fully International Padel Federation-compliant, easy to install, and features some of the most durable materials on the market.



Technical Insights

Structure

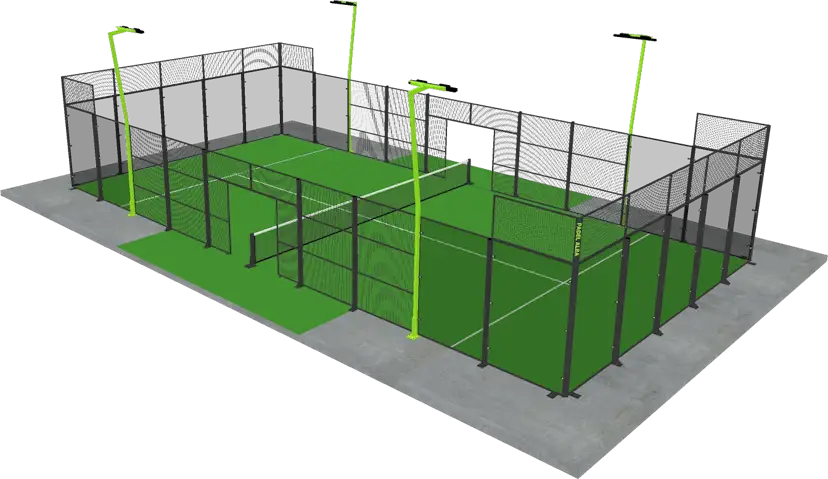

A 20x10m PATH Alba padel court structure is made of durable galvanized steel posts, 2x3m mesh modules with 30x30x2mm profile and 50x50x4mm safety-certified electro-welded mesh, and 2x4m glass modules with 2x1m mesh. All joints are reinforced with threaded rods and nuts.

  • 100% alignment with the FIP requirements
  • Solid ground installation with type anchors
  • High resistance to mechanical impact
  • High resistance to corrosion

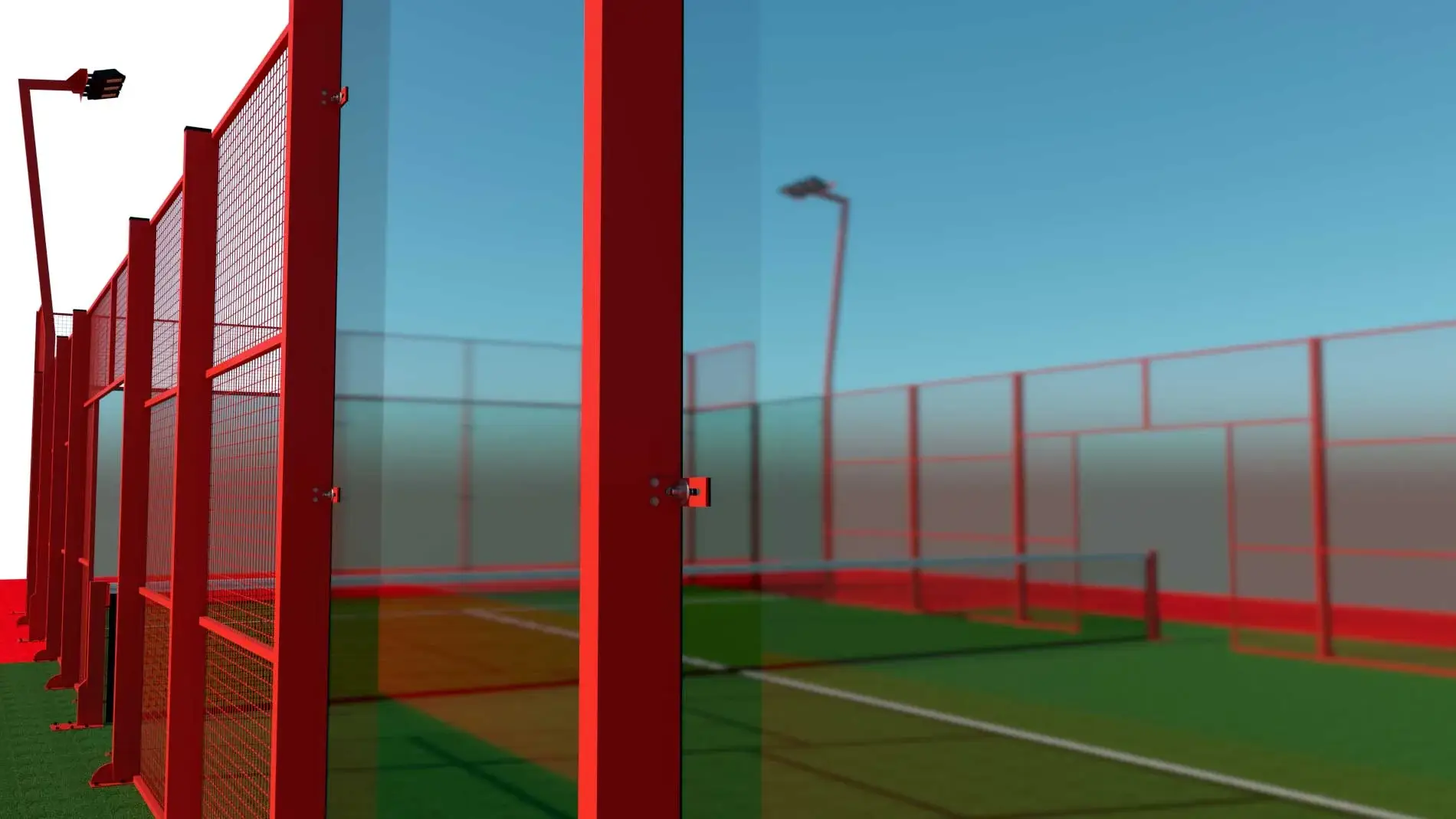

Glass

PATH Alba padel courts are equipped with 10m or 12mm-thick 2x3m tempered glass sheets installed on a 5mm neoprene layer that reduces vibrations and minimizes the risk of breakage. The glass modules are fixed on 3m 100x60x2mm pillars with 250x150x10mm plates sealed with PVC caps for extra protection and reinforced by 0.5m metal brackets at the base. Our glass is:

  • Manufactured according to the UNE EN 12150-1 standard
  • 5 times stronger than the ordinary glass
  • Safe - disintegrates into non-sharp fragments in case of breakage
  • Perfect in terms of visibility, aesthetics and maintainability
