PATH Full Panoramic

The Unbeatable Flagship

The most sophisticated among our models, PATH Full Panoramic is a choice for pro-level competitions: top player experience, ultimate visibility, safety & durability.



Technical Insights

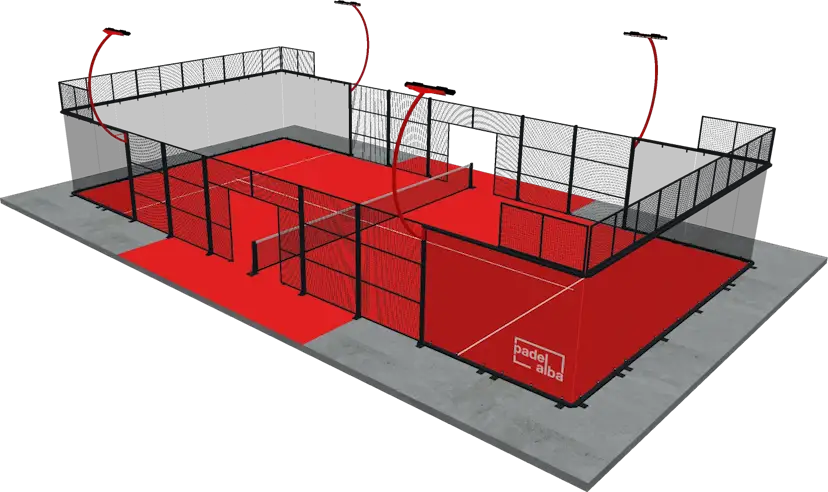

Structure

A 20x10m PATH Full Panoramic padel court structure is made of durable galvanized steel posts, 2x3m mesh modules with 30x30x2mm profile and 50x50x4mm safety-certified electro-welded mesh, and 2x4m glass modules with 2x1m mesh. All joints are reinforced with threaded rods and nuts. Corner finishes with galvanized structural tube beams of 100x60x2mm, M16 or higher screws and metal plugs of 120mm minimum length are available as an option.

  • 100% alignment with the FIP requirements
  • Solid ground installation with type anchors
  • High resistance to mechanical impact
  • High resistance to corrosion

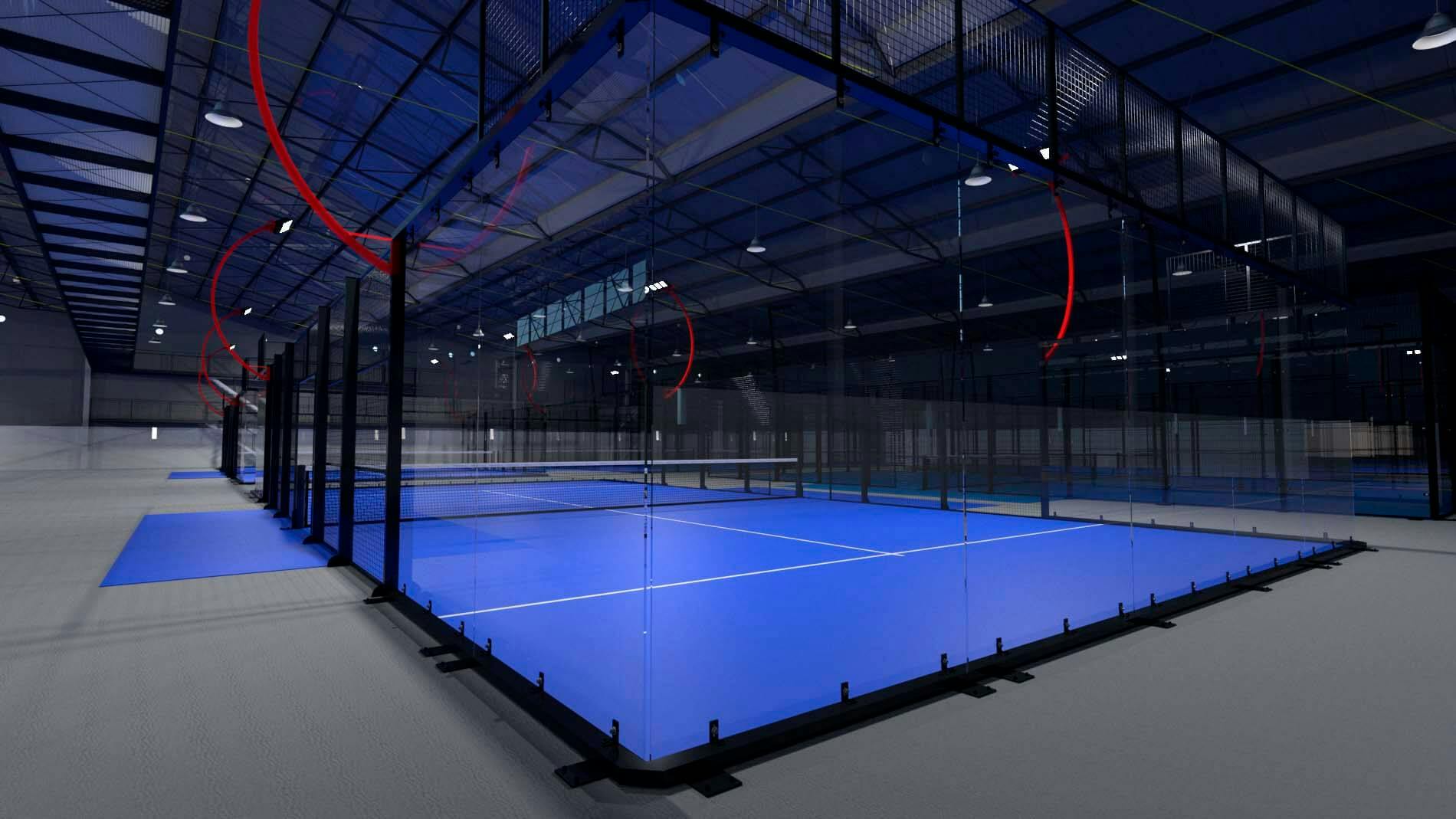

Glass

PATH Full Panoramic padel courts are equipped with 12mm-thick 2x3m tempered glass sheets installed on a 5mm neoprene layer that reduces vibrations and minimizes the risk of breakage. The glass modules are fixed on 3m 100x60x2mm pillars with 250x150x10mm plates sealed with PVC caps for extra protection and reinforced by 0.5m metal brackets at the base. Our glass is:

  • Manufactured according to the UNE EN 12150-1 standard
  • 5 times stronger than the ordinary glass
  • Safe - disintegrates into non-sharp fragments in case of breakage
  • Perfect in terms of visibility, aesthetics and maintainability
